| Model |

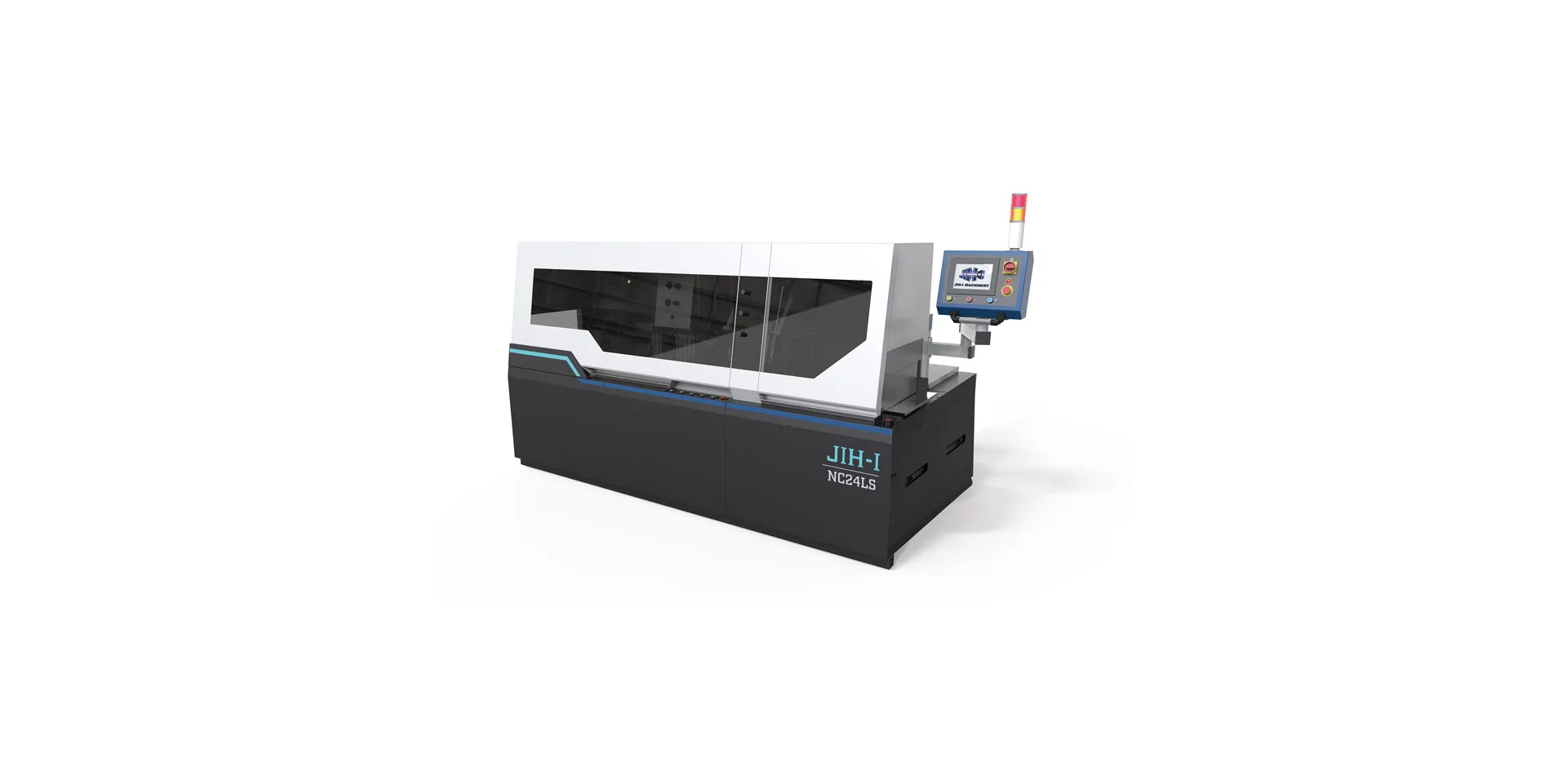

JIH-NC24 LS (NEW TYPE) |
JIH-NC24 LBS(NEW TYPE) |
| Servo Drive System |
Ball screw |
Ball screw |
| Cutting Capacity ( H x W ) |
200 x200, 175 x210, 130 x350, 40x400 mm (Depends on saw blade size) |
200 x200, 175 x210, 130 x350, 40x400 mm (Depends on saw blade size) |
| Max. Feed Distance(one cycle) |
1,000 mm(Unlimited recycle feed distance) |
2,500 mm |
| Saw Spindle Speed |
1,500 ~ 3,500R.P.M .
(Depends on saw blade size to set) |
1,500 ~ 3,500R.P.M .
(Depends on saw blade size to set) |
| Saw Spindle Motor |
15 HP(level 4) |
15 HP(level 4) |
| Inverter |
15 HP(opt.20HP) |
15 HP(opt.20HP) |
Material Feed
Servomotor |
1kw (Optional 1.5kw) |
2kw |
Saw Feed
Servomotor |
1kw |
1kw |
| Table Height From Floor |
920 mm |
920 mm |
| Touch-Sensing Screen |
9.7" |
9.7" |
| Saw Blade Size |
Choice of 12"~24"(1" bore) |
Choice of 12"~24"(1" bore) |
| Max. Load |
100kgs |
100kgs |
| Air Pressure |
4 ~ 6kgs / cm² |
4 ~ 6kgs / cm² |
| Machine Dimensions (L x M x H) |
3,700 x 1,970 x 1,870 mm |
5,800 x 1,970 x 1,870 mm |
| Packing Dimensions (L x M x H) |
3,800 x 2,070 x1,970 mm |
5,900 x 2,070 x 1,970 mm |
| Net / Gross Weight |
2,835 / 2,920kgs |
3,300 / 3,500kgs |
