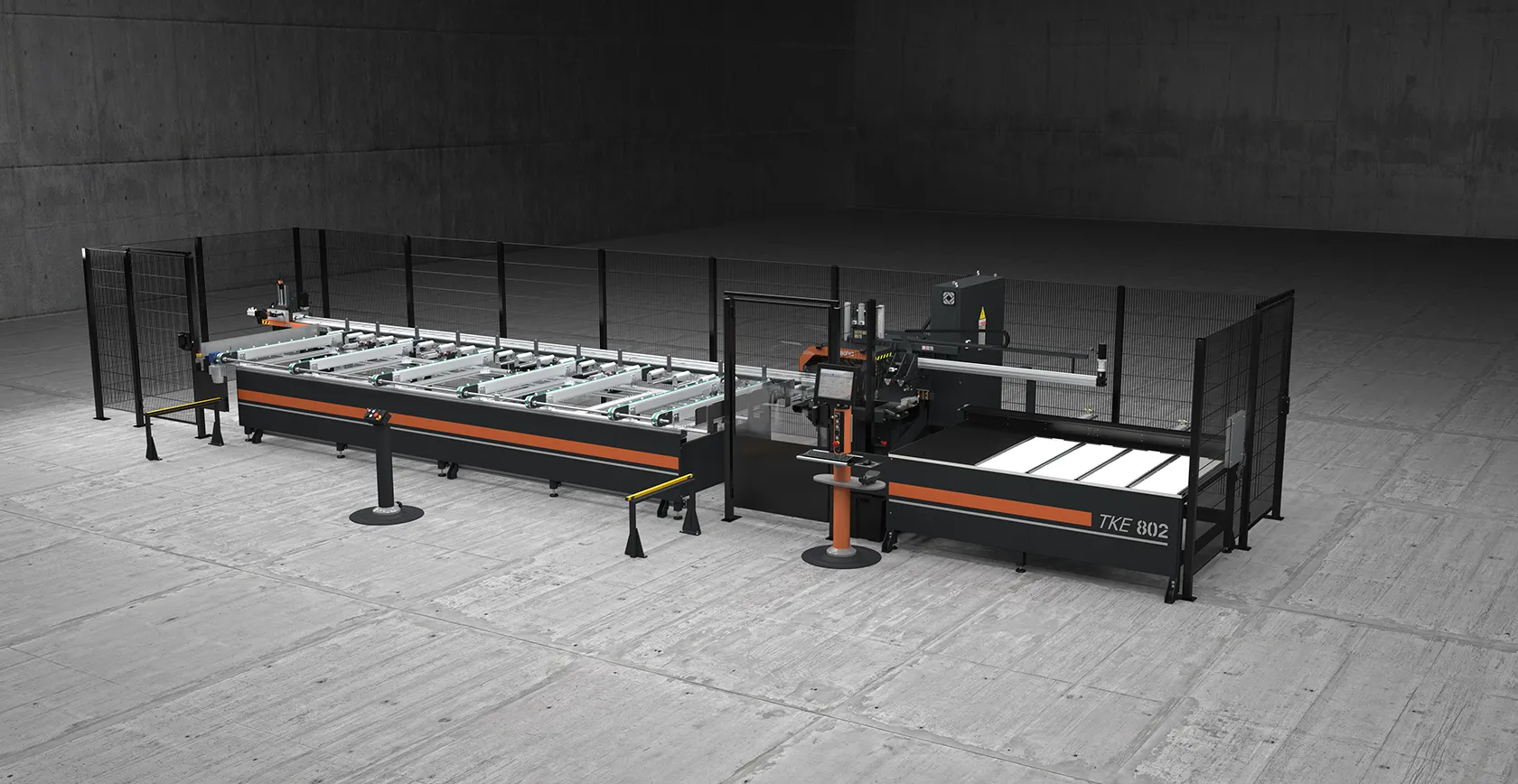

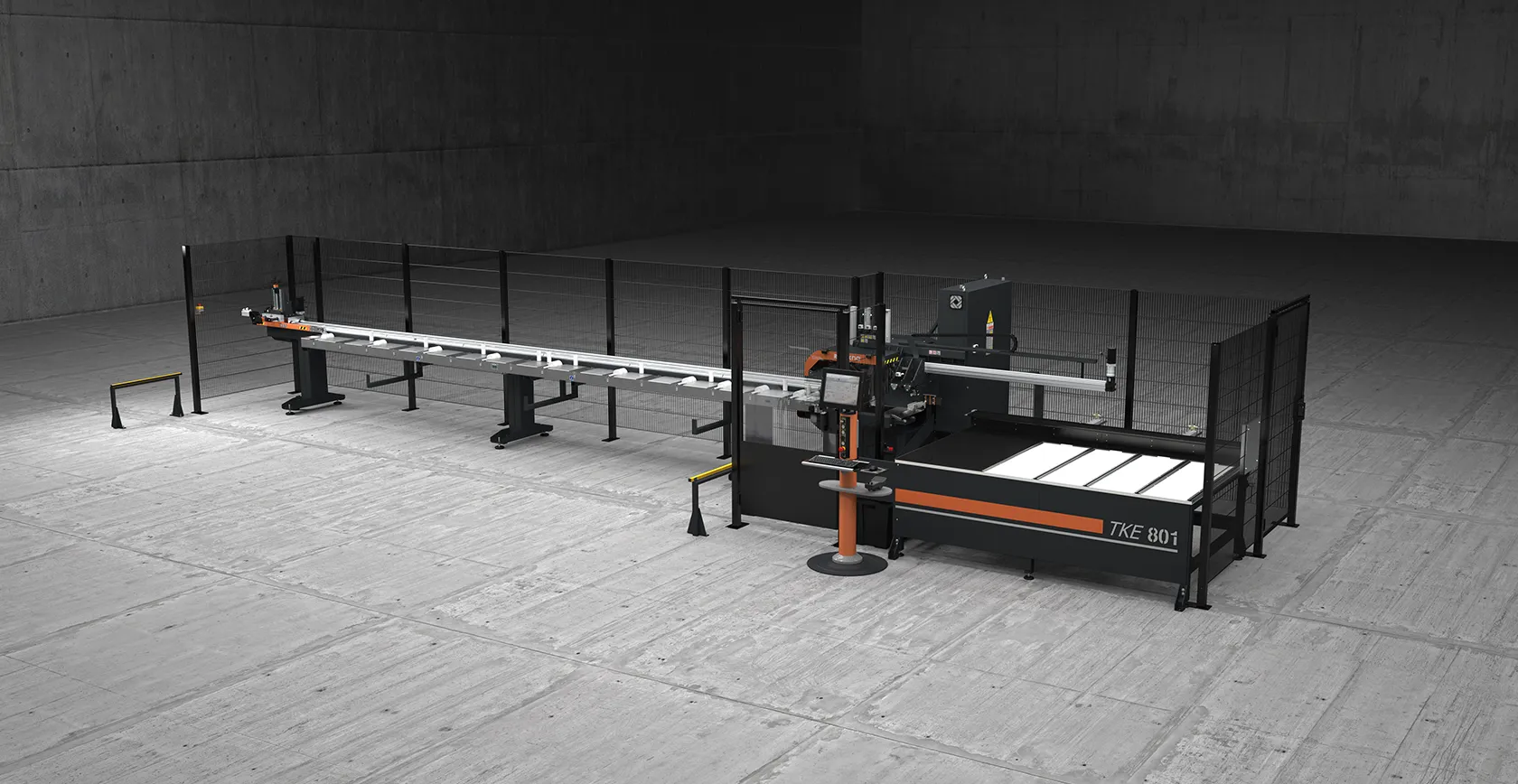

Automatic CNC cutting-off centre with horizontal blade feed, 3 controlled axes, designed for cutting profiles made of aluminium, PVC, light alloys in general. It performs automatic cutting according to predefined and optimized cutting lists. It can perform the bevelled cut on both sides of the profile. The machine is intended to perform cutting at an angle from 45° to 135°. Automatic bar feeder and automatic unloading magazine on the opposite side. It can be fitted with customised horizontal and vertical drilling units for specific automatic machining operations.
| AXIS TRAVEL |
|
| U AXIS (feeder) (mm) |
7.500 |
| X AXIS (feeder) (mm) |
1.000 |
| B AXIS (angle of blade) |
45° ÷ 135° 22°30’ ÷ 157°30’ |
| MACHINING CAPACITY |
|
| Max. loadable profile length |
6.850 |
| Theoretical minimum cutting length (mm) |
0 |
| Max. profile length that can be unloaded automatically (mm) |
2,500 |
| BLADE |
|
| Diameter |
550 |
| Hydro-pneumatic feed |
● |
| CUTTING AREA GUARD |
|
| Integral with pneumatic control |
● |
| LUBRICATION SYSTEM |
|
| Spray-mist lubrication with oil emulsion |
● |
| CLAMPS |
|
| Vertical pneumatic clamps |
3 |
| Horizontal pneumatic clamps with pressure reducer plus pressure gauge |
2 |
| Clamp pressure reduction with pressure gauge |
● |
| MOTOR |
|
| Power rating (kW), three phase blade drive motor |
3 |
| PREDISPOSITION FOR SWARF EXHAUSTER |
|
| MG2-MG4 |
Optional |
