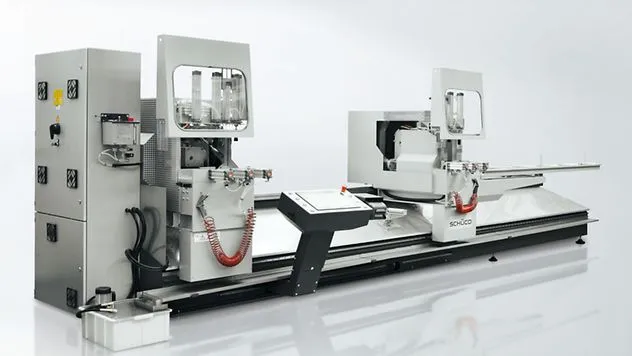

Double-headed mitre saw with 400 mm saw blade, for steel profiles, can be controlled using SchüCal.
- 7 CNC-controlled axes:
(movement of saw head (X axis), inclining the W and U-axis, 2x saw blade feed, 2x speed monitoring)
- Constant torque through brushless motor controlled by frequency converter
- CNC-controlled saw feed
o Adjustable feed rate
o Adjustable cutting depth
o Fast retraction
- Ventilation (by sliding the profile supports for protection of the saw blade that moves back after the separating cut)
|
Model:
|
5,0 m
|
|
Motor:
|
400 V / 2 x 4,5 kW
|
|
Speed:
|
40 – 250 1/min, continuous
|
|
Blade tilt:
|
up to 45° (outwards), up to 45° (inwards)
|
|
Saw blade Ø:
|
400 mm
|
|
Cutting length (min.):
|
250 mm Cutting length (90°/90°), > 250 mm with short cutting programm (90°/90°))
|
|
Cutting length (max.):
|
5000 mm for double cut, 9600 mm for excess length cut
|
|
Weight:
|
2800 kg
|
